Surge and Lightning Monitoring Devices
Showing all 3 results

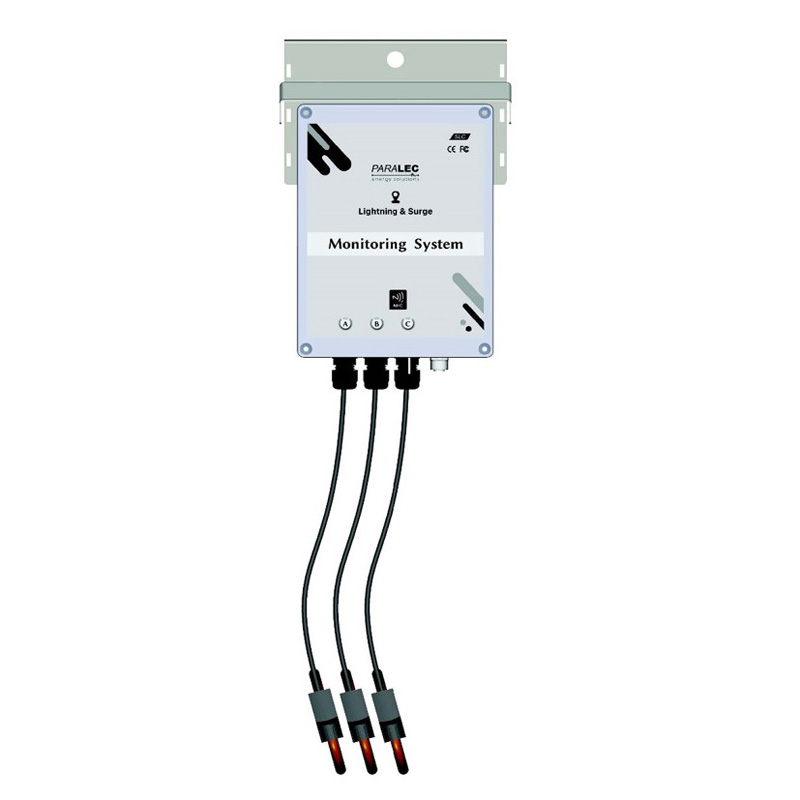

Streamer Electric has dedicated its research activities to lightning and surges qualification and protection. This new range of products aims at helping our customers to understand the origin of surges, their parameters and impact оn equipment. lt involves diagnostic of gapped arresters (EGLA, CLAH, LLPD) in service : peak current, polarity, waveform record, cumulative charges, let-through, follow current, number of events, with outstanding accuracy 10%. AII record come with exact time stamp thanks to embedded GPS. А count down method based on let through allow the user to have an overview оn the % of lifespan reaming for the device. Warning are also registered whenever thresholds are crossed оn : follow current duration, follow current peak, discharge capabilities, energy handling capabilities. With а communication range of 2.5 km оn LoRaWan standards allows the user have а safe and remote connection. SL Surge Monitoring саn bе installed easily оn ground conductors. Thanks to up to 10m саbе and split core transformers, diameter 50mm. Thanks to its IP65, housing , rugged materials and self power , the SL serie is suitable for outdoor installation. Power supply is ensured through supercap cell and solar panels. Optional DC power supply саn also bе arranged. Key features – Monitoring of LLPD, EGLA, TLA, CLAH, lightning rods transmission lines, building. – Wired or wireless communication: RS485 modbus, LoRA, NFC. – Outdoor device : IP65. – Solar supply & external supply versions. – Unique condition monitoring : total discharged energy monitoring system, lightning, surge events and discharges record, lightning waveform. – Durable device: stainless steel, polycarbonate UV resistant, aluminum. – Up to 3 phases gapped arresters оn the same device. – Monitoring software – GPS localisation and timestamp

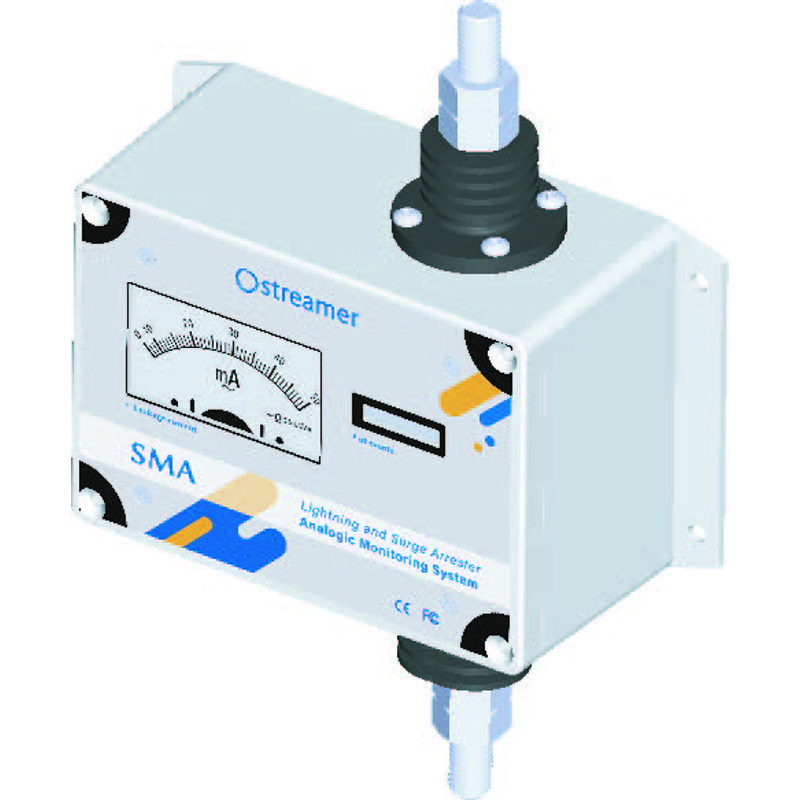

Key features Monitoring of surge arrester, MOA, MOR, SPD, TLA. – Analogic total leakage current measurement from 0 to 50mA. – Surge counting from 200A minimum to 100kA detection. Outdoor and durable device: IP67, glass window, stainless steel, aluminium. No maintenance: self-powered device, no battery. Easy counter installation: bottom, top, back or strap mounting. Scope of application STREAMER SMA is an electro-mechanical leakage measurement device and surge counter. The leakage meter provide the value of the total leakage current flowing through the ground conductor from 0 to 50 mA. The surge counter is meant to count the number of lightning strikes based on the current flowing in a conductor. The SMA shall be installed in series on the ground leads, at the ground terminal of the metal surge arrester. It can be mounted top, bottom or strapped. Terminals can be used either way. The device complies to the IEC 62561. Thanks to its IP67, housing, rugged materials and self power, the SMA is suitable for outdoor and hazardous atmospheres.

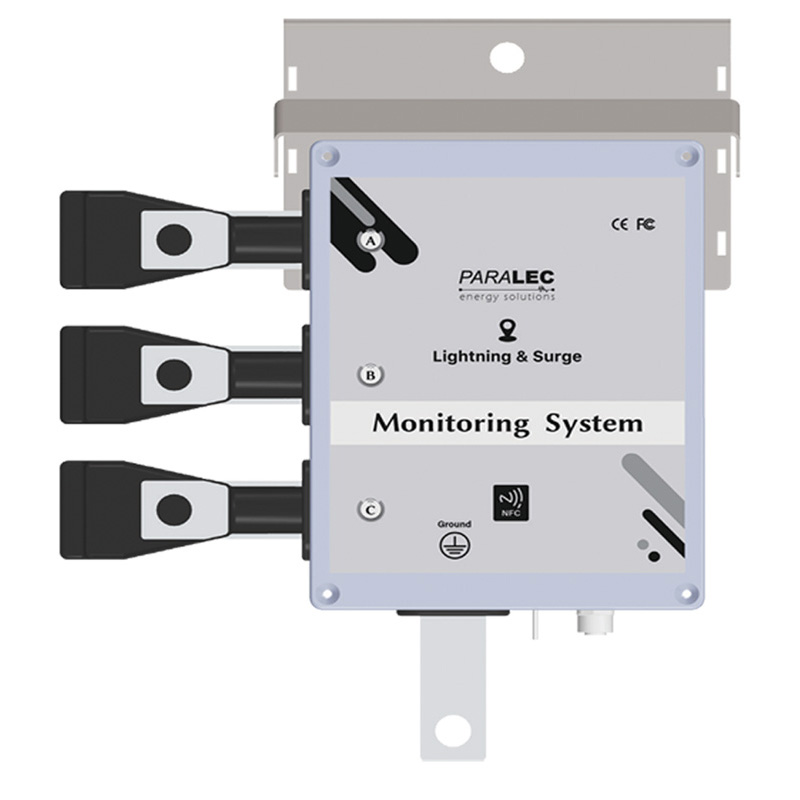

Streamer Electric has dedicated its research activities to lightning and surges qualification. This new range of products aims at helping our customer to understand the origin of surges, thier parameters and impact on equipment. It involves diagnostic of metal oxide based surge arresters (MOR,TLA, MOA) in service, record peak currents, historical data, number of events, cumulative charges discharged by equipment. It allows ageing and problems qualification to reach higher accuracy in order to optimize reliability and expenditure. With a communication range of 2.5km LoRaWan standards allows the user have a safe and remote connection. SM Series Surge Monitoring can be installed easily on ground conductors.Thanks to its IP65, housing, rugged materials and self power, the SM Series suitable for outdoors. Power supply is ensured through supercap cell and solar panels. Optional DC power supply can also be arranged. Key features – Monitoring of surge arrester, EGLA, МОА, MOR, SPD, TLA. – LoRa and NFC wireless solution. Wired via RS485, Digital output. – Solar supply & external supply versions. – Unique condition monitoring : resistive leakage current & total discharged energy monitoring system, lightning, surge events and discharges records. – DuraЫe device: stainless steel, polycarbonate UV resistant, aluminum. Outdoor device : IP65. – Up to 3 phases / surge arresters оп the same device. – Monitoring software – GPS localisation and timestamp
