MCG SURGE PROTECTION
Showing 13–24 of 27 results
Main/Branch Panel Surge Protector The Surge Free 160M and 120M offer powerful modular protection at the main or branch panels for most applications. Computers, sensitive business equipment and other high tech systems are guarded from high speed transients. All models have extended headroom and a twenty-year warranty.
Main Service Panel Surge Protector The 200LS Series provides 200,000A of surge protection for rugged and reliable protection at the main service panel. Each phase is guarded by 5 times redundant protection paths – reassuring when sensitive equipment’s continuous operation is at stake. Twenty- year, no-nonsense warranty; free protection modules for life. Series features mix and match options for a customized protector at stock prices.
Service Entrance Surge Protector The 300LS Series provides 300,000A of robust surge protection for rugged and reliable protection at the main service entrance of large facilities. Each phase is guarded by 7 times redundant protection paths – reassuring when sensitive equipment’s continuous operation is at stake. Twenty- year, no-nonsense warranty; free protection modules for life. Series features mix and match options for a customized protector at stock prices.

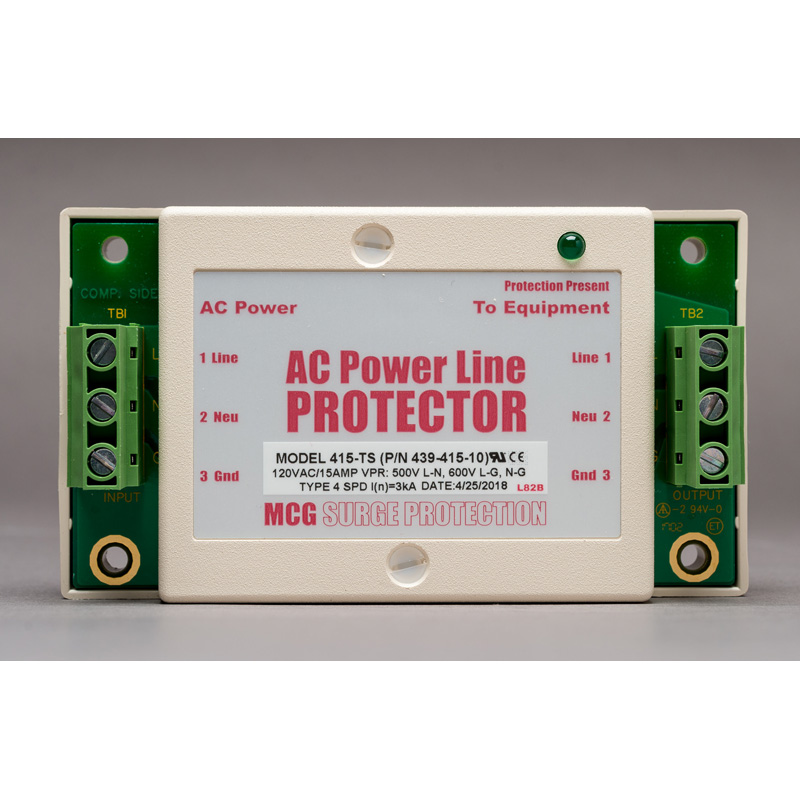

Equipment Level AC Surge Protection The 400 Series installed at or within a piece of equipment (PLCs, fire alarm monitoring systems, security controls, etc.) provides compact, heavy-duty surge suppression. Now with touch-safe terminal blocks, the units offer an elevated level of personnel protection. Employing a sophisticated combination of brute force surge protection and EMI/RFI filtering, they will prevent damage or malfunction to sensitive equipment.
Service Entrance Surge Protector The 400LS Series provides 400,000A of robust surge protection for rugged and reliable protection at the main service entrance of large facilities. Each phase is guarded by 10 times redundant protection paths –reassuring when sensitive equipment’s continuous operation is at stake. Twenty- year, no-nonsense warranty; free protection modules for life. Series features mix and match options for a customized protector at stock prices.
Single Phase Parallel AC Surge Protector The 530P is a versatile protector that is optimized for single phase applications up to 240VAC. Low impedance construction results in superior protection due to low let-through levels, without sacrificing reliability. At the heart of the protector is our new, all mode, single phase protection module.
Service Entrance Surge Protector The 560LS Series provides 560,000A of robust surge protection for rugged and reliable protection at the main service entrance of large facilities. Each phase is guarded by 14 times redundant protection paths –reassuring when sensitive equipment’s continuous operation is at stake. Twenty- year, no-nonsense warranty; free protection modules for life. Series features mix and match options for a customized protector at stock prices.

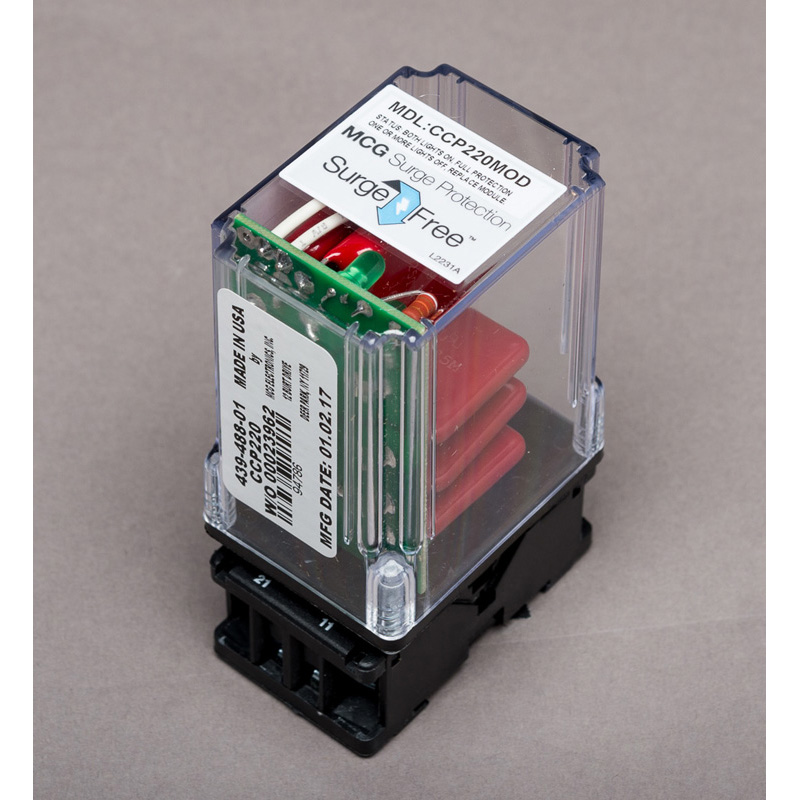

Control Panel AC Surge Protection The CCP (Control Cabinet Protector) Series answers the call for an ultra compact, modular AC surge protector for control cabinets, OEM equipment, and other systems requiring reliable protection. The CCP is available for 120V, 220V, 230V, 240V, 120/240V split phase, and 240V (two hots & ground) systems. Models with optional noise filtering are available.
100kA/phase model The new CPT SE series provides high current, industrial grade protection in a rugged, yet compact powder coated, steel enclosure. This ultra small series comes standard with the latest thermally protected protection components which are able to divert high repetitive surge currents. All components are monitored by a comprehensive LED status display. This line is compliant to stringent international surge testing standards. Comes with our 20-year “No Nonsense” warranty.
200kA/phase model The new CPT SE series provides high current, industrial grade protection in a rugged, yet compact powder coated, steel enclosure. This ultra small series comes standard with the latest thermally protected protection components which are able to divert high repetitive surge currents. All components are monitored by a comprehensive LED status display. This line is compliant to stringent international surge testing standards. Comes with our 20-year “No Nonsense” warranty.
Critical Load Surge Protector Taking compact protectors to the next level, MCG’s PT Seires is the most advanced non-modular surge protector that money can buy. Within it’s compact 10×10” enclosure, there are up to 20 high-energy, thermally protected varistors packed inside. These high performance varistors are typically only found in much higher priced protectors. The PT Series guards small to medium sized electrical panels. Delta models also available, contact the factory for more information.
Local Panel Surge Protectors Small, yet packed with the latest technology available for transient voltage surge suppressors. The PT80 and PT40 use high peak current fuses and large thermally-protected varistors to provide both reliable and safe protection for sensitive electronics. Use on local service panels, generators, transfer switches, dedicated equipment, OEM equipment, and residential/smart home applications.
